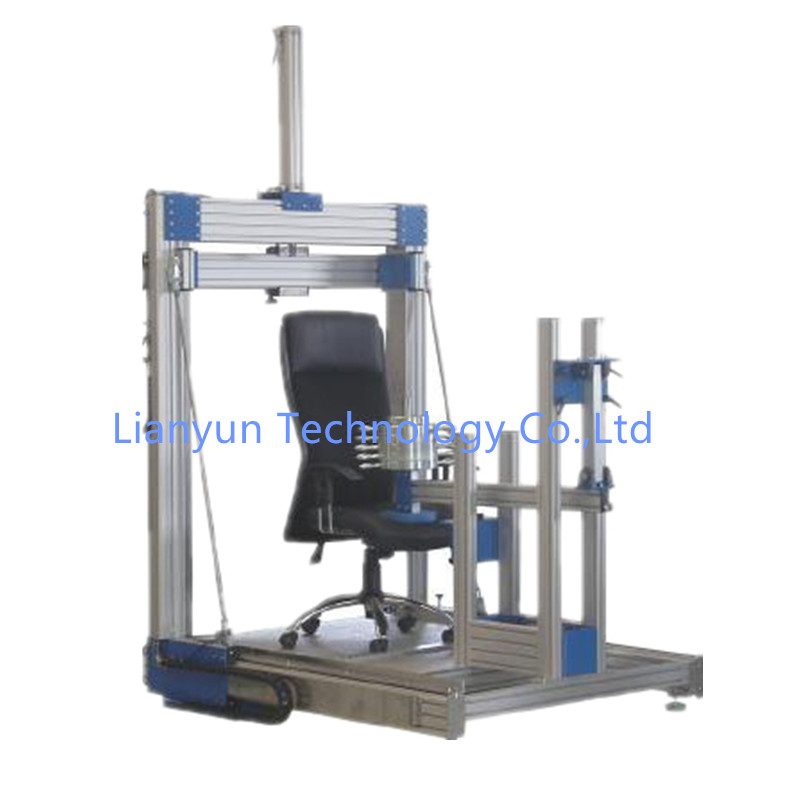

Stability Testing Machine For Chair Table
Model: LY-FM-8102
Function:
The chair stool and table type stability testing machine is to simulate the chair and stool furniture under the conditions of daily load, the ability to resist the tilting force and the simulated table furniture are subject to static load. Under the conditions, the stability was measured.
Implementation Standards:
1. GB/T 10357.2-2013 “Test of Mechanical Properties of Furniture – Part 2: Stability of Chairs and Stools”
Table Stability
2, QB/T 2280-2007 “Office Chair” 6.6.2
Technical Indicators
1. Load Capacity: 500N
2, Load Weight Accuracy: 1/10000
3. Connecting Rod Seat: Fixed to the bracket and connected to the connecting rod
4, Weight: Loaded on the sample bench by loading pad
5, Loading Pad: Used to load in the test site
6. Stop: Used to prevent the test piece from moving but not restricting it from tipping over
7. Stop Rail: The front and rear distance of the stopper can be adjusted to adapt to different sizes of specimens.
8, Bracket Fixing seat: For fixing bracket
9, Data Save: Automatically save all test data, convenient to call at any time
10, Control Mode: Computer automatic + LABVIEW control or PLC + touch screen control
11, Power: 220VAC 5A, 50HZ
12. Air Source: Air pressure: ≥0.6MPa; Flow rate: ≥800L/min; Air source filtered and dried
