Description

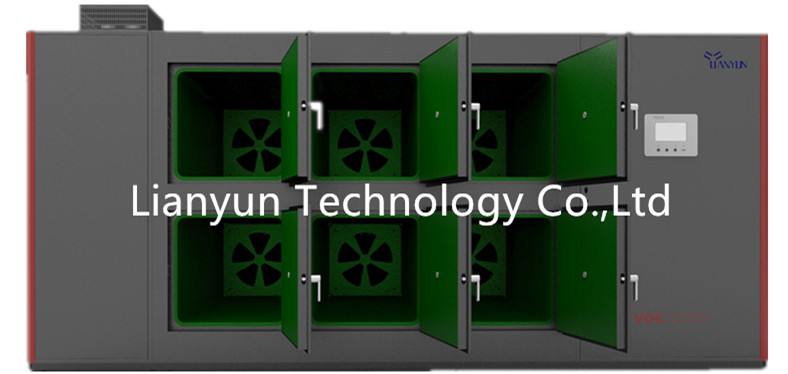

Multi-Chambers for VOC Emission Test

  The Small-scale Emission Chambers are Designed and Manufactured by Advanced Technology of Germany which is Our Own Intellectual Property Right. In Acorrdance with the National Standard T/310101002-C003-2016,GB/T31107-2014, the International Standard ASTMD6007-2,EN717-1,ANSI/BIFMAX7.1-2007 and ISO16000-4, We Developed the Second Generation VOC Detection Environment chamber Which Involves 5 Patent Technologies. It is Dedicated to the Detection of Formaldehyde and VOC emissions in Wood-based panel, Leather and other products. Its Advanced Reliability and Other Aspects Have Reached the International Level of Similar Equipment, and It is Widely Used in Furniture and Building Materials and Other Industries.

Technical Specification：

Almost Full Emission Freely for Test Chambers

Air-jacket Temperature Conditioning

Cooling Mode: The Fresh Air Combined with Staged Mechanical Cooling

The Chamber Humidity: Controlled by the Solenoid Valve Switching

The Inner Suraface of Test Chamber is Coated with Inertia Treatment.

Controller: SIEMENS System

Cloud Data Management Platform

Desorption in High Temperature

Highly Efficient PLC Control and Monitoring System

Maintenance-friendly Design

TECHNICAL DATA

Data for Installation and Operation:

Regular Dimensions（Customed）

60L(D500mm*W400mm*H300mm)

100L(D500mm*W500mm*H400mm)

200L(D500mm*W500mm*H800mm)

1000L(D750mm*W750mm*H1780mm)

Noise:

Less Than 65 dB(A) Measured in 1 m Distance from the Front of Emission Chamber

EMC test:

In Acorrdance With EN 61000-6-4: 2001

Anti-interference:

In Acorrdance With EN 61000-6-2: 2001

Circuit:

Nominal Voltage：AC 380V±10% 50Hz

Nominal Power：Approx. 45KW(11 Chambers)

Nominal Current：Approx. 90A

Cable: Supplied On-site

Fuse Protection On Spot：100A slow blow

Installation Conditions:

The Equipment is Designed for Installation in Standard Rooms.

The Maximum of Permissible Ambient Temperature for Storage and Installation is +55℃.

Heat Emission from Ambient Room: Max. Approx. 4 kW

▲ Inspection Standard of Production and Installation

1、T/310101002-C003-2016《Limits of Harmful Substances in Plastic Surface of School Sports Grounds》

2、《Primary and Secondary School Synthetic Material Surface Sports Venue》Draft for comments

3、GB/T31107-2014 General Technical Conditions for Climate Chambers for the Detection of Volatile Organic Compounds in Furniture

4、ISO 16000-9-2006 Determination of Volatile Organic Compounds Released from Building Products and Furniture

5、GB18580 -2017《Limits of Formaldehyde Release in Wood-based Panels and Their Products》

6、GB18584 Approval Draft《Interior Decoration Materials, Limited Quantities of Harmful Substances in Wooden Furniture》
