Model:
KH-FM-8111
Function:

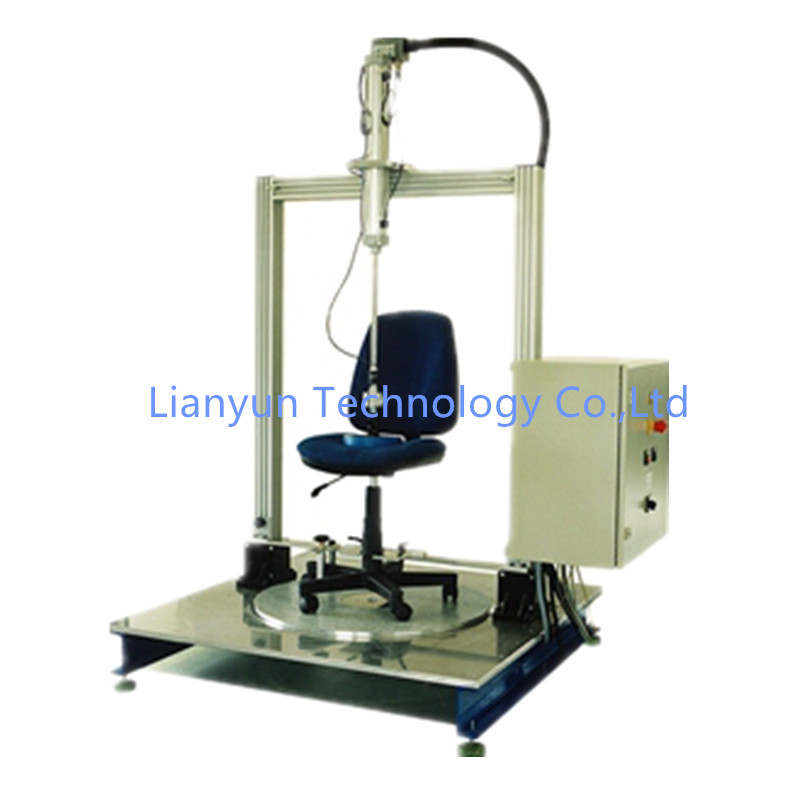

Simulate the rotation of the user sitting in the chair, so that the chair wheel can be rotated for a certain number of times under a certain load, and then the damage is checked. Used to assess the ability of the chair wheel to withstand fatigue strength and wear.
Implementation Criteria:
1. QB/T2280-2007 “Office Chair” 6.6.12
2, ANSI/BIFMA X5.1-2011 “Office Furniture. General Office Chair. Test”
Technical Indicators:
1, Rotation Angle: 45 °, 90 °, 180 °, 270 ° and continuous selection
2, Test Speed: 5~15 times/min can be set arbitrarily
3, Rotation Time, Gap Time: 0~99 seconds adjustable
4, Weight Loading, Block Loading and Unloading Time: 0~99 seconds, Adjustable
5, Test Loading Block: 75-102KG, Adjustable
6, The number of tests: 0-9,999,999 times can be arbitrarily set
7, The rotary motor has overload protection, alarm function
8. Control Mode: PLC+ touch screen control, with stop/disconnect memory and breakpoint detection and shutdown function;
9, Power: 220VAC 2A, 50HZ
10. Air Source: Air Pressure: ≥0.6MPa; Flow Rate: ≥800L/min; Air Source Filtered and Dried
